Low Energy Led Security Floodlights 60 Degree White Body For Wall Mount Lighting
Quick details of Led Security Floodlights:
► Product type: Flood Lights.
► Model: SU-WS50.
► LED qty.: 72 PCS.
► Lumen index: 6500 lumens.
► Light source type: super bright LED chips SMD 3030 osram.
► Input work voltage: AC85-265V, 50/60Hz.
► Optional color temperature: normal 2700K, 3000K, 4500K, 6500K, 7000K+ and customised color.
► Available wattages: 30w, 50w, 100w, 150w and 200w.
► Surge protection: 4KV.
► Shock-proof class: IK07.
► Water-proof class: IP66.
► Material: die casting aluminum and optical PC lens with 60 Deg. and 120 Deg. optional.
► Optional narrow beam angle 60 degree and wide beam angle 120 degree.
► Various smart type: 0-10V dimming, Dali dimmming, pir motion sensor, radar sensor, photocel sensor, microwave sensor, DMX512 and remote control.
Descriptions of Led Security Floodlights:
► 72 LEDs 6500 Lumens
The built-in upgraded 72pcs super bright LED smd chips can make 6500lm high output brightness, which is much more brighter than other light sources.
► Brightness Upgraded
Powered by high-quality 3030 LED chips, increased the number of light beads, better brightness and large illumination.
► Thickened Aluminum
Superior & thickened ADC12# diecasting aluminum with corrosion-proof, shock-proof, dust-proof and weather-proof, faster heat sinking to keep long lifespan.
► Constant Current Driver
High quality constant current driver with high work efficiency, PF>0.9, famous brand drivers available.
► Waterproof Upgrated
Rain-proof & water-proof protection IP66 upgraded, suitable for wet applications.
► High Quality Glass Bead Cover
High-quality optical bead PC cover with 60 degree, no yellow, and high light transmission up to >95%.
Product Parameters of Led Security Floodlights:
| Product Name | LED Security Floodlight |
| Model | SU-WS30 | SU-WS50 | SU-WS100 |
| Input Voltage | AC85-265V, 50/60Hz |
| Power Consumption | 30W | 50W | 100W |
| Light Source | SMD 3030 Osram |
| Light Efficiency | 130lm/W |
| Color Temperature | 2700k, 3000k, 4500k, 5000k, 6500k |
| Product Size (mm) | L223*W181*H35 | L253*W211*H35 | L284*W241*H40 |
| Driver | Constant Current Isolated Driver |
| Body Material | ADC12 Aluminum |
| Cover Material | PC cover |
| CRI | >80 |
| PF | >0.9 |
| Housing Color | Black, White |
| Surge Protection | 4KV |
| Beam Angle | 60° |
| Class Protection | IK07, IP66 |
| Working Temperature: | -30 ~ 50 Deg. |
| Life Span | 50,000H |
| Warranty | 3 Years |
| Application | garden, yard, wall, stair, shop, door |

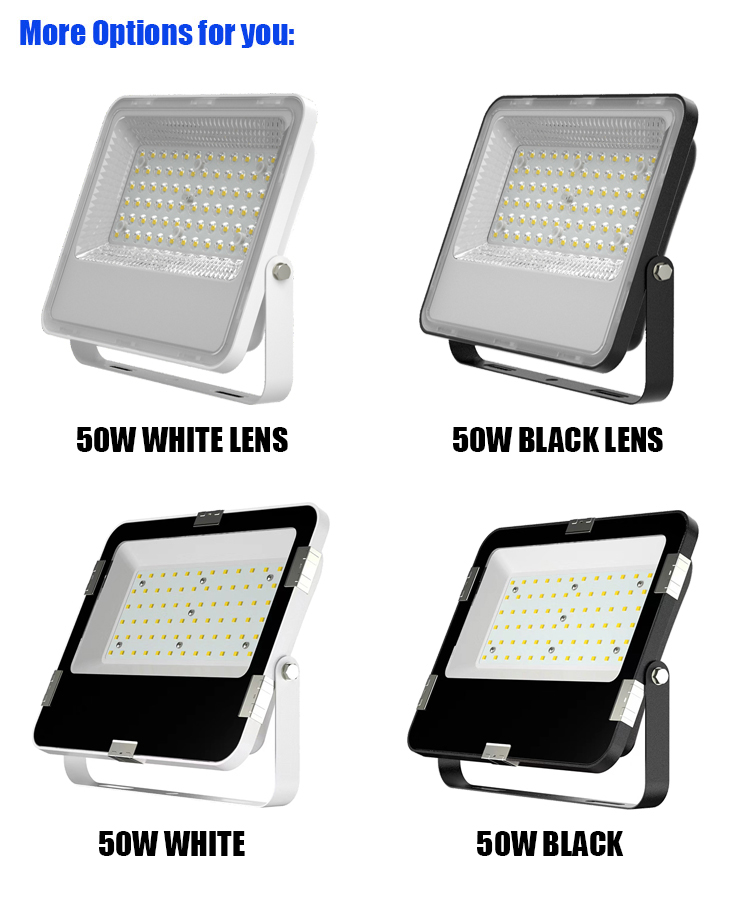

Product Show of Led Security Floodlights:
Product figure of Led Security Floodlights:
1. Optical PC lens against yellowing.
2. Waterproof silicon ring.
3. Nano-plastic reflector against the high temperature and UV, long use and never yellowing.
4. SMD3030 LED high light efficiency and lighting to further.
5. Aluminum base with high thermal conductivity,and faster heat running.
6. High-quality and famous brand driver: Meanwell, sosen etc.
7. ADC12 die-casting aluminum radiator, efficiency up to 96W/M.K.
8. Strong support and strong installation.
Dimensions of Led Security Floodlights:
Optical Lens 60 and 120 degree available of Led Security Floodlights:
Installations of Led Security Floodlights:
Frequent Questions of Led Security Floodlights:
1. Can I have 1pc sample to test firstly?
Re: Yes, 1pc sample can be offered, and mixed samples are welcome.
2. Do you have customised service like box, logo?
Re: Yes, all of our products can be customised. Please kindly tell us your idea!
3. Can you do Black body for this model?
Re: Yes, we can. This model has White and Black body for your options.
4. How long can I get my package?
Re: 1pc could be got about 1 week.
5. Can this led security floodlights be dimmable?
Re: Yes, this model can make dimmable such as 0-10V, Dali dimming etc. Please contact us for details!
6. Can you do colorful box?
Re: Yes, certainly. Colorful box and brown paper are possible.
7. Does this led security floodlights include any driver?
Re: Yes, absolutely. This lamp includes constant-current isolated driver, PF>0.9 and warranty 3 years. Other brand driver is available.
8. How can you guarantee the quality?
Re: All raw materials must be checked before stocking and the finished products must have been tested and aged. Finally packed. If unfornately any fault happend, we will replace.
